Bom preço on-line

Detalhes dos produtos

Casa > produtos >
Conector circular impermeável
>

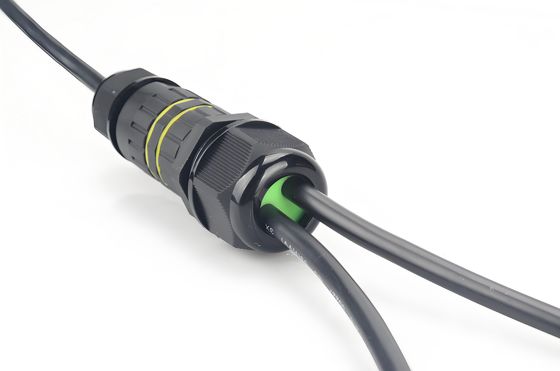

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação
Contacte-nos
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contato agora
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
  • Nome

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out

Nome da marca: Cablein
MOQ: 100pcs
preço: The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem: Carton de exportação de alta qualidade
Condições de pagamento: T/T, União Ocidental
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
SHENZHEN CHINA
Certificação:
CE, ROHS, TUV , ETL
Temperatura operacional:
-25°C-+80°C
Classificação IP:
IP67/IP68/IP69
Certificações:
UL/CE/ROHS
Modo de conexão:
a tomada/desconecta
estilo de acasalamento:
Parafuso
Material do alfinete de contacto:
Outros, de aço inoxidável
Número do pino:
2-5 agulhas
Fixação do cabo:
OD=5mm--14mm
Habilidade da fonte:
Produção mensal: 10.000 conjuntos
Destacar:

5-Pin Waterproof Circular Connector

,

1 In 2 Out M25 Connector

,

PA66 Material Screw Lock Connector

Descrição do produto
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
This industrial-grade connector features a 1-in 2-out design for efficient power or signal distribution, with IP68 waterproof protection and secure screw-lock mechanism for reliable performance in harsh environments.
Key Specifications
Parameter Specification
Product Name M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Wiring Range 0.5mm² -2.5 mm²
Rated Current 24A
Operating Voltage 0.4KV
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Product Advantages
  • 1-in 2-Out Compact Design: Enables efficient power or signal distribution from a single source, simplifying wiring and saving space.
  • IP68 Rated for Harsh Environments: Fully waterproof and dustproof, with a robust construction that operates reliably from -40°C to +100°C.
  • Secure Screw Lock Mechanism: Ensures a vibration-resistant, stable connection that won't loosen, preventing downtime.
  • Straight-Through for Easy Wiring: Features an accessible, straight-through design that allows for quick and tool-friendly installation.
Product Images
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 0
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 1
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 2
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 3
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 4
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 5
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 6
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 7
Frequently Asked Questions
What is the primary application of the 1-in 2-out design?
This design is ideal for daisy-chaining or power/signal splitting. You can efficiently connect a single power source to two separate devices, such as linking two sensors, powering a main unit and an auxiliary light, or simplifying wiring in control cabinets, which significantly reduces installation time and cost.
How reliable is the IP68 waterproof rating in real-world conditions?
Our IP68 rating is rigorously tested. It guarantees complete protection against dust ingress and can be continuously submerged in water over 1 meter deep for extended periods. This makes it perfectly suited for harsh environments like outdoor installations, washdown areas in industrial settings, and exposed machinery.
Is the screw locking mechanism vibration-proof and easy to install?
Yes. The threaded screw-lock mechanism provides a secure, vibration-resistant connection that prevents accidental disconnection in high-motion environments. The straight-through design also allows for straightforward wiring, making installation tool-friendly and quick.
Tags:

Conector circular resistente à água

Conectores masculinos e femininos

Conectores de cabo circulares

Bom preço on-line

Detalhes dos produtos

Casa > produtos >
Conector circular impermeável
>
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
  • Nome

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out

Nome da marca: Cablein
MOQ: 100pcs
preço: The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem: Carton de exportação de alta qualidade
Condições de pagamento: T/T, União Ocidental
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
SHENZHEN CHINA
Marca:
Cablein
Certificação:
CE, ROHS, TUV , ETL
Temperatura operacional:
-25°C-+80°C
Classificação IP:
IP67/IP68/IP69
Certificações:
UL/CE/ROHS
Modo de conexão:
a tomada/desconecta
estilo de acasalamento:
Parafuso
Material do alfinete de contacto:
Outros, de aço inoxidável
Número do pino:
2-5 agulhas
Fixação do cabo:
OD=5mm--14mm
Quantidade de ordem mínima:
100pcs
Preço:
The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem:
Carton de exportação de alta qualidade
Tempo de entrega:
5-8 dias úteis
Termos de pagamento:
T/T, União Ocidental
Habilidade da fonte:
Produção mensal: 10.000 conjuntos
Destacar:

5-Pin Waterproof Circular Connector

,

1 In 2 Out M25 Connector

,

PA66 Material Screw Lock Connector

Descrição do produto
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
This industrial-grade connector features a 1-in 2-out design for efficient power or signal distribution, with IP68 waterproof protection and secure screw-lock mechanism for reliable performance in harsh environments.
Key Specifications
Parameter Specification
Product Name M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Wiring Range 0.5mm² -2.5 mm²
Rated Current 24A
Operating Voltage 0.4KV
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Product Advantages
  • 1-in 2-Out Compact Design: Enables efficient power or signal distribution from a single source, simplifying wiring and saving space.
  • IP68 Rated for Harsh Environments: Fully waterproof and dustproof, with a robust construction that operates reliably from -40°C to +100°C.
  • Secure Screw Lock Mechanism: Ensures a vibration-resistant, stable connection that won't loosen, preventing downtime.
  • Straight-Through for Easy Wiring: Features an accessible, straight-through design that allows for quick and tool-friendly installation.
Product Images
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 0
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 1
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 2
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 3
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 4
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 5
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 6
M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out 7
Frequently Asked Questions
What is the primary application of the 1-in 2-out design?
This design is ideal for daisy-chaining or power/signal splitting. You can efficiently connect a single power source to two separate devices, such as linking two sensors, powering a main unit and an auxiliary light, or simplifying wiring in control cabinets, which significantly reduces installation time and cost.
How reliable is the IP68 waterproof rating in real-world conditions?
Our IP68 rating is rigorously tested. It guarantees complete protection against dust ingress and can be continuously submerged in water over 1 meter deep for extended periods. This makes it perfectly suited for harsh environments like outdoor installations, washdown areas in industrial settings, and exposed machinery.
Is the screw locking mechanism vibration-proof and easy to install?
Yes. The threaded screw-lock mechanism provides a secure, vibration-resistant connection that prevents accidental disconnection in high-motion environments. The straight-through design also allows for straightforward wiring, making installation tool-friendly and quick.
Tags:

Conector circular resistente à água

Conectores masculinos e femininos

Conectores de cabo circulares
