M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage
Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação
Contacte-nos
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contato agora
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage
  • Nome

M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage

Nome da marca: Cablein
MOQ: 100pcs
preço: The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem: Carton de exportação de alta qualidade
Condições de pagamento: T/T, União Ocidental
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
SHENZHEN CHINA
Certificação:
CE, ROHS, TUV , ETL
Tensão de quebra:
1500 V ou superior
Classificação à prova d'água:
IP68
Vida de inserção:
1000 vezes
Cor:
Preto
Número de pinos:
2 pin
Material de moradia:
PA66
Certificações:
UL/CE/ROHS
Material de vedação:
Silicone, de borracha
Habilidade da fonte:
Produção mensal: 10.000 conjuntos
Destacar:

2-Port T-Shape Waterproof Circular Connector

,

2-Core 1 In 2 Out T-Shape Connector

,

1500V Breakdown Voltage M25TC Connector

Descrição do produto

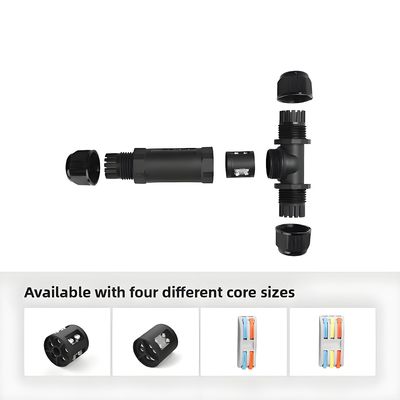

M25TC 2-Port T-Shape IP68 Waterproof Connector 2-Core 1 In 2 Out
Product Overview

The M25TC is a high-performance T-shape waterproof connector designed for reliable power or signal distribution in demanding environments. Its 1-in-2-out configuration simplifies circuit splitting while maintaining IP68 protection.

Technical Specifications
Parameter Specification
Product Name M25TC 2-Port T-Shape IP68 Waterproof Connector 2-Core 1 In 2 Out
Wiring Range 0.5mm² -4 mm²
Rated Current 32A
Operating Voltage 450V
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Key Features
  • Superior IP68 Protection

    Engineered with robust sealing to reliably guard against dust, water ingress, and harsh environmental conditions, ensuring stable performance in outdoor and industrial applications.

  • Effortless T-Type Circuit Splitting

    Features a practical 1-in-2-out design that simplifies power or signal distribution from a single source to two devices, streamlining your wiring layout and saving installation time.

  • Secure & Vibration-Resistant Connection

    The screw-type termination ensures a tight, reliable contact that resists loosening under vibration, guaranteeing long-term electrical safety and connection integrity.

  • Compact & Durable Build

    The compact T-shape housing saves space without compromising on mechanical strength, making it an ideal and rugged solution for space-constrained installations.

Product Images
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 0
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 1
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 2
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 3
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 4
M25TC 2-Port T-Shape Waterproof Circular Connector with 2-Core 1 In 2 Out and 1500V Breakdown Voltage 5
Frequently Asked Questions
Q: What is the maximum current and voltage rating for this connector?
A: The M25TC connector is typically rated for 10A and 250V AC/DC. However, we always recommend consulting the specific product datasheet for the exact specifications applicable to your wire gauge and environmental conditions to ensure optimal performance and safety.
Q: How is the IP68 waterproof rating achieved and what does it protect against?
A: The IP68 rating is achieved through a combination of a precision-machined housing, a silicone sealing gasket, and integrated cable gland rings. This robust design offers complete protection against dust ingress and long-term water immersion at depths up to 1 meter for 30 minutes, making it ideal for demanding outdoor and industrial applications.
Q: Is this connector suitable for use with flexible or stranded wire?
A: Yes, absolutely. The screw-type clamping terminals of the M25TC are specifically designed to securely hold and make reliable contact with standard flexible/stranded wires. This ensures a stable, vibration-resistant connection without damaging the conductors.
