M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação
Contacte-nos
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contato agora
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
  • Nome

M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector

Nome da marca: Cablein
MOQ: 100pcs
preço: The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem: Carton de exportação de alta qualidade
Condições de pagamento: T/T, União Ocidental
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
SHENZHEN CHINA
Certificação:
CE, ROHS, TUV , ETL
Atual:
41A máx. para poder
Resistência ao isolamento:
≥1000mΩ
Estilo de conector:
Direto
Certificações:
CE, Rohs
Terminar:
Ouro
Número do conector:
2
Cor:
Preto
Temperatura de trabalho:
-40 a 105°C
Habilidade da fonte:
Produção mensal: 10.000 conjuntos
Destacar:

41A Max Current Waterproof Circular Connector

,

PA66 Material Through-Type Connector

,

-40~105℃ Working Temperature Screw Locking Connector

Descrição do produto
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
High-performance waterproof connector designed for industrial applications requiring secure, weatherproof electrical connections.
Key Specifications
Installation Type Wire-to-Wire
Connection Type Screw Locking
Rating IP68
Pin Configuration 3-Pin
Waterproof Ring Sizes 5-9mm, 9-12mm, 10-14mm
Applicable Wire Gauge 1.5mm²-6mm²
Material PA66 (Nylon)
Technical Parameters
Parameter Specification
Product Name M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector
Wiring Range 1.5mm² - 6 mm²
Rated Current 41A
Operating Voltage 450V
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm, 9-12mm, 10-14mm
Product Advantages
1. Unshakable Connection in Demanding Environments

Superior vibration resistance with screw locking mechanism ensures a tight, secure grip on cables, preventing loosening even under constant vibration or mechanical stress. Guarantees stable and reliable electrical connection with minimal downtime.

2. Ultimate Protection Against Water and Dust

IP68 rated for complete protection against dust and water. Fully dust-tight and withstands continuous submersion, making it ideal for outdoor, marine, and industrial applications.

3. Streamlined Installation and Maintenance

Effortless through-type wiring design simplifies the wiring process, allowing for quick and tool-efficient cable insertion and securing from one or both ends, reducing installation time and labor costs.

4. Robust Durability for Long-Term Reliability

Constructed from premium PA66 (Nylon) and high-grade seals, this connector resists corrosion, UV exposure, and chemical degradation, ensuring long service life in harsh conditions.

Product Images

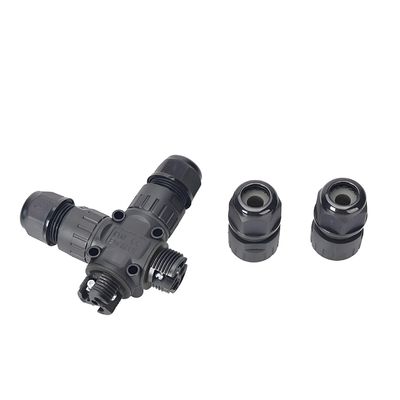

M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector 0
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector 1
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector 2
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector 3
M25x1.5 3-Pin Screw Locking IP68 Waterproof Through-Type Connector 4
Frequently Asked Questions
Q1: What is the maximum depth and duration for the IP68 waterproof rating?
A: Certified to IP68 standard, this connector can be continuously submerged in water up to 1.5 meters (approximately 4.9 feet) deep for a maximum of 30 minutes. Ideal for applications exposed to heavy rain, splashing, or temporary immersion.
Q2: What is the main advantage of the screw-locking design compared to push-pull connectors?
A: The screw-locking mechanism provides vibration-proof security, mechanically preventing connection loosening over time due to vibration, shock, or cable strain. Ensures consistently reliable electrical connection, superior to push-pull types in industrial, automotive, or mobile equipment applications.
Q3: What cable outer diameter (OD) range is this connector compatible with?
A: Designed to accommodate standard cable outer diameters from 5mm to 14mm. For optimal sealing and strain relief, use cables within this specified range. Check your cable specifications before installation.
