Conector circular impermeável

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação

Contacte-nos

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contato agora

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Nome da marca:	Cablein
MOQ:	100pcs
preço:	The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem:	Carton de exportação de alta qualidade
Condições de pagamento:	T/T, União Ocidental

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

SHENZHEN CHINA

Certificação:

CE, ROHS, TUV , ETL

Grau IP:

IP68

Pin de contato:

2 pin

Tipo de produto:

Conector circular

Cor:

Preto

Palavras-chave:

conector do cabo de alimentação

Vida mecânica:

≥1000 vezes

estilo de acasalamento:

Parafuso

Resistência da chama:

Ul94 V-0

Habilidade da fonte:

Produção mensal: 10.000 conjuntos

Descrição do produto

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Specifications

Installation Type: Wire-to-Wire

Connection Type: Screw Locking

Rating: IP68

Pin: 2

Waterproof Ring: 3.5-7mm 5-8mm 7-10mm

Applicable Wire Gauge: 0.5mm²-1.5mm²

Material: PA66

Datasheet

Parameter	Specification
Product Name	Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking
Wiring Range	0.5mm² - 1.5 mm²
Rated Current	17.5A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	3.5-7mm 5-8mm 7-10mm

Advantages

1. Ensures Vibration-Proof & Secure Connections
The screw-locking mechanism prevents loosening under stress, guaranteeing a stable and reliable connection in high-vibration environments like machinery and vehicles.
2. Delivers Ultimate IP68 Environmental Protection
Fully sealed against dust, dirt, and prolonged water submersion, this connector provides unwavering performance in harsh outdoor and industrial settings.
3. Simplifies Installation with a Straight-Through Design
The intuitive in-line design allows for quick, tool-free mating, significantly reducing installation time and effort for cable-to-cable connections.
4. Built for Durability with a Robust M16 Interface
Featuring a standardized M16 threaded design and high-grade materials, this connector resists corrosion, impact, and mechanical wear for long-term use.

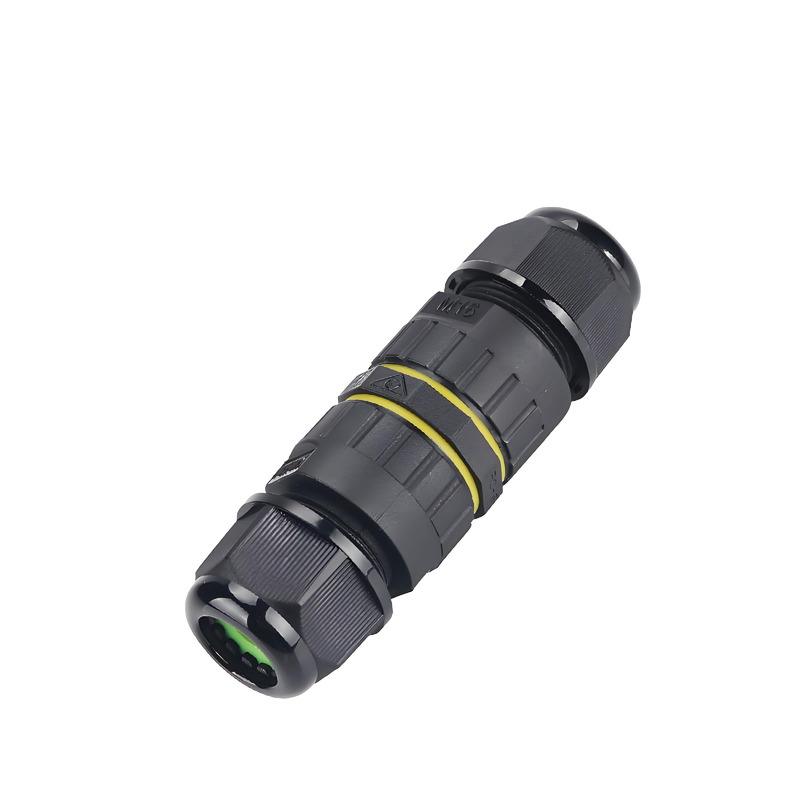

Product Images

FAQ

1. What is the IP68 rating suitable for?

The IP68 rating ensures complete protection against dust and prolonged immersion in water, making it ideal for outdoor, industrial, and automotive applications.

2. How does the screw-locking mechanism work?

It features a threaded coupling nut that, when hand-tightened, secures the connection against vibration and accidental disconnection.

3. Is this a cable-to-cable or panel-mounted connector?

This is a straight-through, in-line connector designed specifically for cable-to-cable connections.
