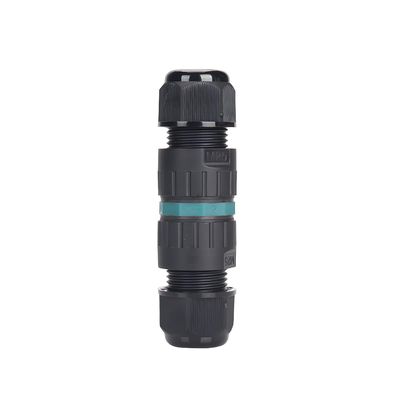

P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage

Nome da marca:	Cablein
MOQ:	100pcs
preço:	The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem:	Carton de exportação de alta qualidade
Condições de pagamento:	T/T, União Ocidental

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Shenzhen China

Certificação:

CE, ROHS, TUV , ETL

Grau de proteção:

IP65 - IP68

Tipo de conector:

Circular

Faixa de temperatura:

-40°C~+105°C

Padrão:

Vida de inserção:

1000 vezes

Amostras:

Amostras pagas

Habilidade da fonte:

Produção mensal: 10.000 conjuntos

Destacar:

0.5mm²-2.5mm² Wire Gauge P25 Connector

1600mA Rated Current Waterproof Circular Connector

0.45KV Operating Voltage Quick-Connect In-Line Connector

Descrição do produto

Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line

The Waterproof Connector P25 features a 5-pin IP67 quick-connect design for reliable in-line wire-to-wire connections in demanding environments.

Specifications

Connection Type: Quick Connect
Installation Type: Wire-to-Wire
Pin: 5
Material: PA66
Applicable Wire Gauge: 0.5mm²-2.5mm²
Waterproof Ring: 5-9mm 9-12mm 10-14mm
Rating: IP68

Technical Parameters

Parameter	Specification
Product Name	Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line
Wiring Range	0.5 - 2.5 mm²
Rated Current	1600mA
Operating Voltage	0.45KV
Ingress Protection (IP) Rating	IP66/IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-14mm

Key Advantages

IP68 Rated for Dust & Water Protection: Complete protection against dust ingress and reliable operation when submerged, ideal for harsh environments.
Tool-Free Quick-Connect Operation: Simple push-and-lock design enables fast installation without tools.
5-Pin Design for Versatile Applications: Simultaneously transmits power, signals, and data in a single connection for complex systems.
Durable In-Line Construction: Robust design ensures long-term reliability in demanding applications.

Product Images

Frequently Asked Questions

What is the IP68 rating?

The IP68 certification guarantees the connector is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

How does the quick-connect mechanism work?

It features a simple push-and-lock design that allows for secure mating and disconnection without any tools.

What wire gauges are compatible?

It is designed to accommodate standard wire gauges, with a common range of up to 18 AWG for flexible and reliable wiring.
