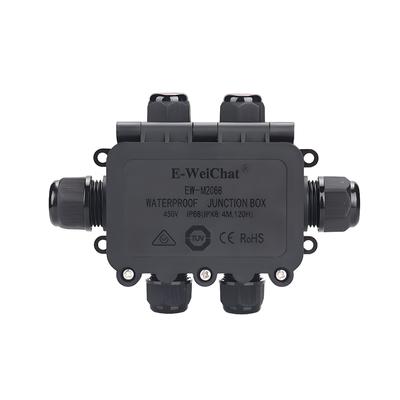

Waterproof IP68 Modular Junction Box with 1in5out Cable Distribution and 40A Rated Current for Harsh Environments

Nome da marca:	Cablein
Número do modelo:	CB-M2068-5T
MOQ:	100pcs
preço:	The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem:	Carton de exportação de alta qualidade
Condições de pagamento:	T/T, Western Union

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Shenzhen China

Certificação:

CE, ROHS, TUV , ETL

Classificação IP:

Material:

plástico, metal

Temperatura operacional:

-40°C a 105°C

Classificação de resistência à chama:

Ul94 V-0

estilo de acasalamento:

Parafuso

Conexão:

caixa terminal/cabo/cabeça da compensação

Tipo de cabo:

Blindado/sem campo

Relacionamento atual:

Habilidade da fonte:

Produção mensal: 10.000 conjuntos

Destacar:

1in5out Junction Box

40A Rated Current Cable Distribution Enclosure

Operating Temperature -40°C to 105°C Modular Junction Box

Descrição do produto

Waterproof IP68 Modular Junction Box 1in5out Cable Distribution Enclosure

This waterproof IP68 modular junction box features a 1-in-5-out cable distribution design, providing reliable protection and organization for electrical connections in demanding environments.

Key Specifications

Connection Type	Screw-Type
Type	1-in-5-out
Material	Plastic
Applicable Wire Gauge	0.5mm²-6mm²
Outer Diameter (OD)	2*M20:5-9mm 9-12mm, M16:3.5-7mm 7-10mm
Part Number	CB-M2068-6T

Technical Parameters

Product Name	2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67 /IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	2*M20:5 - 9 mm, 9 - 12 mm, M16:3.5-7mm 7-10mm
Connector Size	2M25/1M20, 2M25/2M20, 2M25/3M20, 2M25/4M20, 2*M25

Product Advantages

1. Uncompromising IP68 Protection

Ensures complete defense against dust, dirt, and water submersion up to 1.5 meters for 30 minutes. Guarantees reliable operation in the toughest outdoor and industrial environments.

2. Effortless Modular Scalability

Simplifies complex wiring projects with a flexible, 1-in-5-out design. Easily adapts to various cable distribution needs without requiring multiple custom enclosures.

3. Streamlined Installation & Maintenance

Saves significant time and labor with a user-friendly assembly design. Allows for quick connector access and hassle-free future upgrades or modifications.

4. Superior Organization & Damage Prevention

Effectively organizes and protects multiple cable connections in a single, robust unit. Reduces strain, prevents tangles, and minimizes the risk of accidental disconnections or damage.

Product Images

Frequently Asked Questions

Q: What does the IP68 rating mean for this box?

A: It's fully dust-tight and can withstand continuous submersion in water over 1 meter deep, making it ideal for harsh outdoor or wet environments.

Q: How many cables can it connect?

A: It's designed for 1 input and 5 output cables, perfect for distributing power or signals to multiple devices from a single source.

Q: Is it easy to install?

A: Yes, its modular design allows for quick and tool-free assembly, saving time and effort during setup.

Q: What materials is it made from?

A: It's typically constructed from high-grade, UV-resistant plastics or engineering polymers, ensuring durability and long-term weather resistance.

Q: Can I use it for both power and data cables?

A: Absolutely. It's suitable for organizing and protecting both electrical wiring and low-voltage data/communication cables.

Q: Does it require any maintenance?

A: Virtually none. The sealed design prevents dirt and moisture ingress, making it maintenance-free under normal conditions.
