Conector circular impermeável

Waterproof Junction Box 1In3Out IP68 Rated Die-Cast Aluminum Direct Through-Wire

Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação

Contacte-nos

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contato agora

Waterproof Junction Box 1In3Out IP68 Rated Die-Cast Aluminum Direct Through-Wire

Nome da marca:	Cablein
Número do modelo:	CB-M2068-5T
MOQ:	100pcs
preço:	The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem:	Carton de exportação de alta qualidade
Condições de pagamento:	T/T, Western Union

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Shenzhen China

Certificação:

CE, ROHS, TUV , ETL

Corrente classificada:

Metal:

Brass dourada

Conector:

Jst, Ph, Xh/conforme seu pedido

Palavras -chave:

Conector de cabo subterrâneo à prova de água

Material da concha:

PVC Cable Plastic

estilo de acasalamento:

Parafuso

Material de moradia:

PVC, borracha, silicone, PE

Material de contato:

Metal

Temperatura operacional:

-40°C a 105°C

Vida mecânica:

1500 ciclos de acasalamento

Habilidade da fonte:

Produção mensal: 10.000 conjuntos

Descrição do produto

Waterproof Junction Box 1In3Out IP68 Rated Die-Cast Aluminum Direct Through-Wire

Specifications

Connection Type: Screw-Type

Type: 1-in-3-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 2*M20:5-9mm 9-12mm,M16:3.5-7mm 7-10mm

P/N : CB-2068-4TA

Datasheet

Parameter	Specification
Product Name	2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67 /IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	2*M20:5 - 9 mm, 9 - 12 mm,M16:3.5-7mm 7-10mm
Connector Size	2M25/1M20,2M25/2M20,2M25/3M20,2M25/4M20,2*M25

Advantages

IP68 Maximum Protection:
Fully sealed against dust and continuous submersion in water, ensuring reliable performance in harsh outdoor and industrial environments.
Durable Die-Cast Aluminum Construction:
Rugged housing resists corrosion, impact, and UV exposure, providing long-lasting durability and equipment safety.
Streamlined 1-In-3-Out Through-Wire Design:
Simplifies cable management by allowing direct feed-through, reducing installation time and minimizing connection points.
Secure and Efficient Connectivity:
Features integrated cable glands and a compact layout for organized, strain-relieved, and maintenance-free wiring.

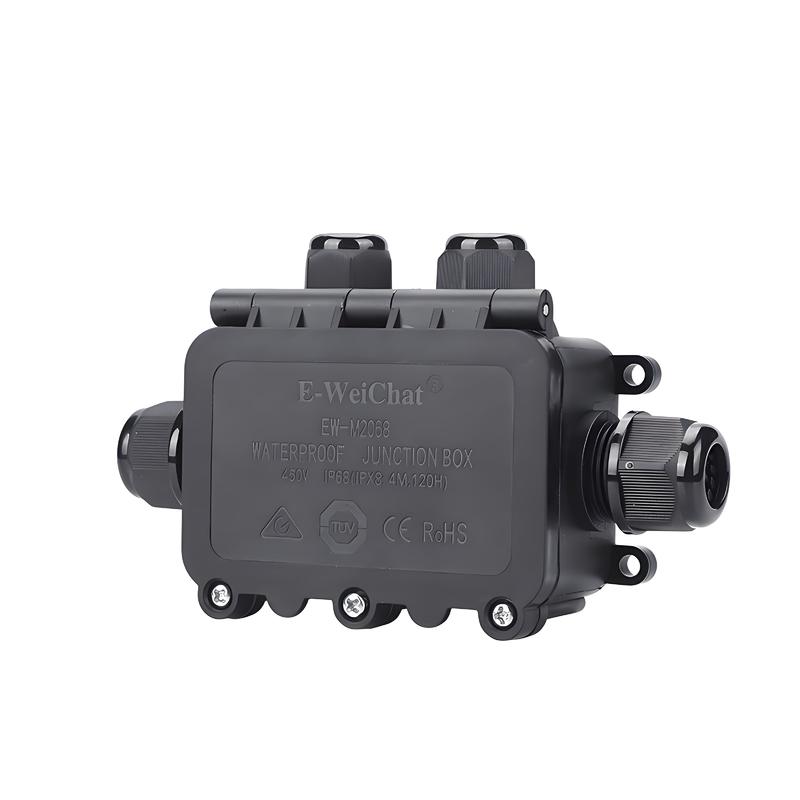

Product Images

1. Q: What does the IP68 rating mean for this box?

A: It offers the highest level of protection: completely dust-tight (6) and can withstand continuous immersion in water beyond 1 meter (8).

2. Q: Is the box suitable for outdoor use?

A: Yes. The combination of IP68 rating, corrosion-resistant die-cast aluminum, and UV resistance makes it ideal for harsh outdoor applications.

3. Q: How are cables secured and made waterproof?

A: The box uses integrated compression cable glands (included) that create a tight, waterproof seal around the cables when tightened.

4. Q: Can I run a single cable directly through the box?

A: Absolutely. The direct through-wire design allows a single input cable to pass through seamlessly for easy daisy-chaining to other boxes or devices.

Tags:
