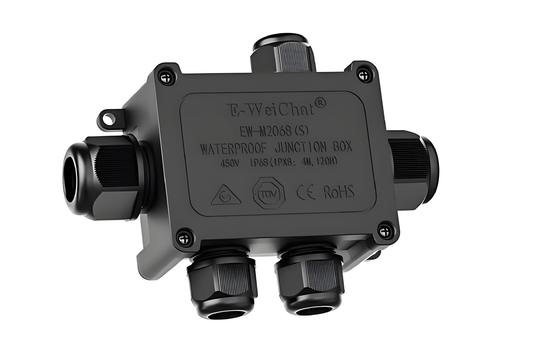

Waterproof Cable Junction Box, 1 Port Input to 4 Outputs, IP68 Rated

Nome da marca:	Cablein
MOQ:	100pcs
preço:	The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem:	Carton de exportação de alta qualidade
Condições de pagamento:	T/T, Western Union

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Shenzhen China

Certificação:

CE, ROHS, TUV , ETL

Fio do conjunto:

Encaixe da solda ou do parafuso

Nível à prova d'água:

IP68

Suportar a temperatura:

-40°C~+105°C

Atual:

40A no máximo.

Garantia:

3 anos

Cor:

Preto e amarelo

Descrição do produto

Waterproof Cable Junction Box, 1 Port Input to 4 Outputs, IP68 Rated

Specifications

Connection Type: Screw-Type

Type: 1-in-4-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 3*M20:5-9mm 9-12mm,2*M25:5-9mm 9-12mm 10-14mm

P/N : CB-2068S-2T

Datasheet

Parameter	Specification
Product Name	2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5 - 9 mm, 9 - 12 mm,10-14mm
Connector Size	2M25/1M20,2M25/2M20,2M25/3M20,2M25/4M20,2*M25

Advantages:

1. Uncompromising IP68 Protection for Harsh Environments

This junction box boasts a true IP68 rating, offering complete protection against both dust ingress and prolonged submersion in water under specified conditions. This ensures reliable performance and longevity in demanding outdoor, underground, or industrial applications, safeguarding electrical connections from moisture, rain, dust, and debris.
2. Efficient 1-to-4 Distribution for Organized Cable Management

The integrated design features one input and four output ports, allowing you to cleanly and efficiently split a single power or signal source to multiple devices. This eliminates messy and potentially hazardous DIY wiring solutions, promoting a organized, professional, and safe installation for systems like landscape lighting, multi-camera setups, or solar panel arrays.
3. Durable and Corrosion-Resistant Construction

Manufactured from robust engineering materials such as high-grade PVC or polycarbonate, this box is built to last. It effectively resists corrosion, impact, UV radiation, and extreme temperatures, ensuring the integrity of your electrical connections year after year and reducing the need for maintenance or replacement.
4. Streamlined Installation and Time Savings

The through-type (straight-through) design and often included user-friendly features like built-in cable glands, sealing gaskets, and push-fit or screw-terminal connectors make installation quick and simple. This design significantly reduces labor time and effort, making it an ideal solution for both professional electricians and DIY enthusiasts.

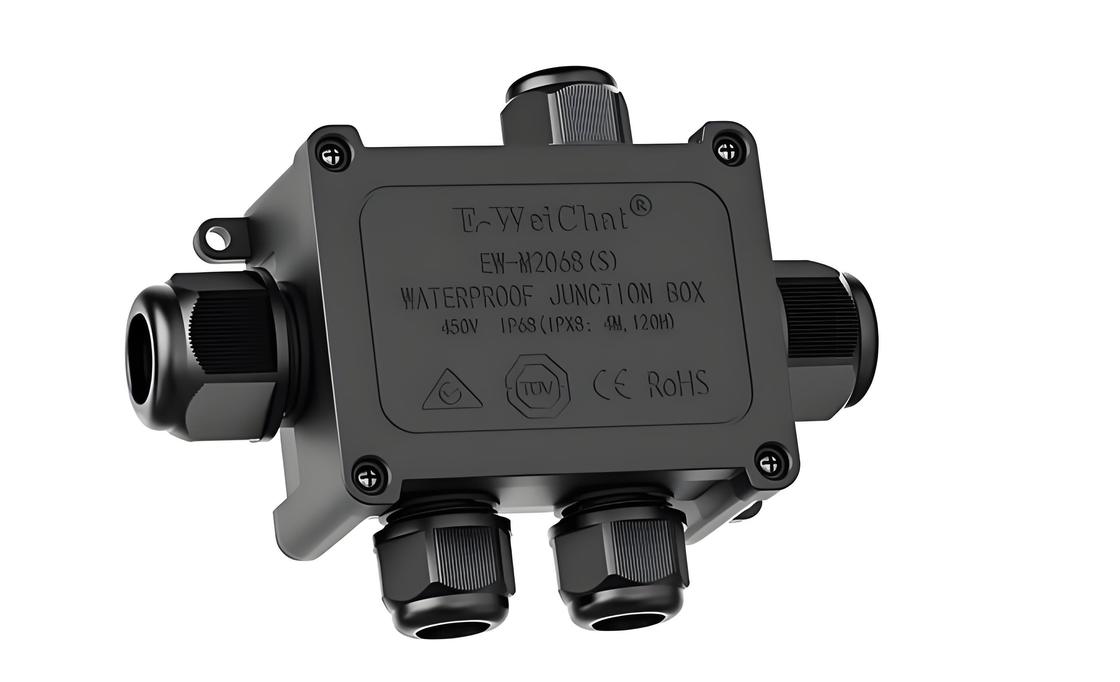

Product Images

FAQ

1. Q: What is the maximum cable size it accepts?

A: It typically accepts cables with an outer diameter of 3-8mm. Please check the specifications for the exact range of the specific model.

2. Q: Is it suitable for direct burial underground?

A: Yes, its IP68 rating makes it fully waterproof and dust-tight, ideal for direct burial or submersion in water.

3. Q: How are the cables secured and made waterproof?

A: Cables are secured using integrated compression glands or sealing gaskets on each port, which tighten to create a waterproof seal around the cable.
