LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic
  • Nome
  • Nome
  • Nome
  • Nome

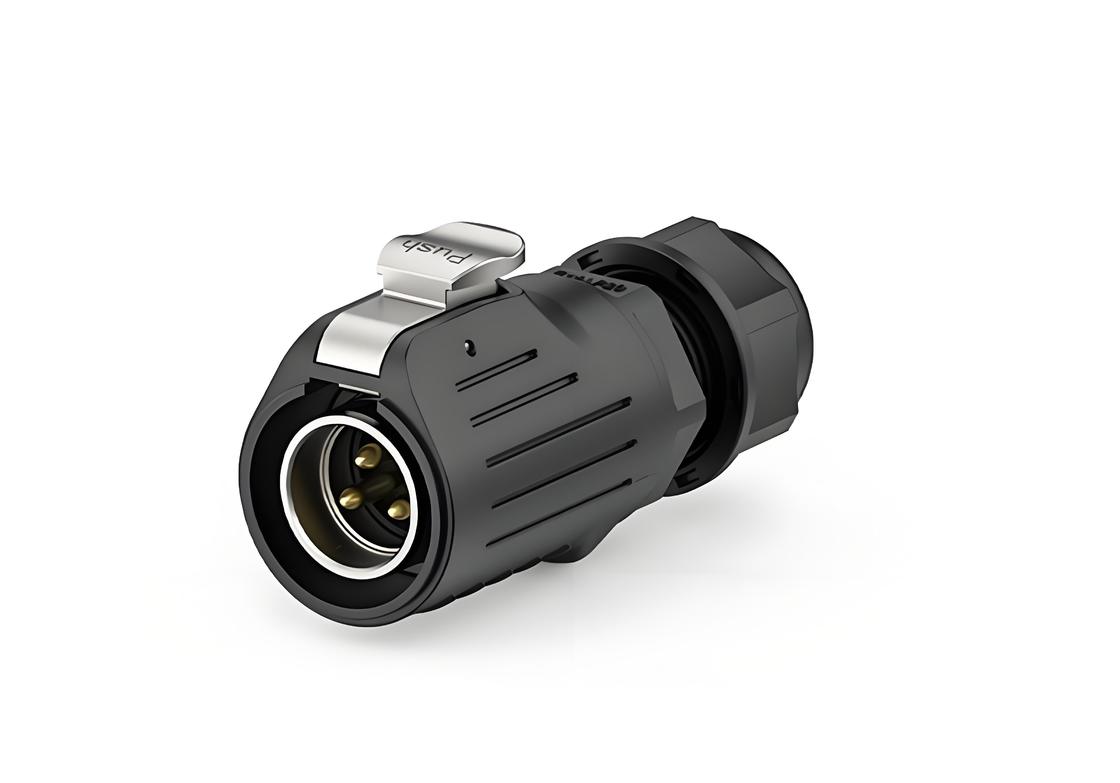

LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic

Nome da marca: Cablein
MOQ: 100pcs
preço: The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem: Carton de exportação de alta qualidade
Condições de pagamento: T/T, Western Union
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
Shenzhen China
Certificação:
CE, ROHS, TUV , ETL
Name:
LP20 3-Core Locking Wire 20A Power Flange Waterproof Connector – Metal + Plastic IP-Rated
Metal:
Gilded brass
Material:
Metal + Plastic
Insertion life:
≥1900 times
Waterproof:
IP68/IP67
Voltage:
500V
Dustproof:
100% Dustproof
Withstand Temperature:
-40℃~+80℃
Flame Resistance Rating:
UL94 V-0
Corrosion Resistance:
High Corrosion Resistance
Destacar:

20A waterproof circular connector

,

IP68 metal plastic connector

,

3-core waterproof electrical connector

Descrição do produto
LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic
Product Specifications
Name LP20 3-Core Locking Wire 20A Power Flange Waterproof Connector – Metal + Plastic IP-Rated
Metal Gilded brass
Material Metal + Plastic
Insertion life ≥1900 times
Waterproof IP68/IP67
Voltage 500V
Dustproof 100% Dustproof
Withstand Temperature -40℃~+80℃
Flame Resistance Rating UL94 V-0
Corrosion Resistance High Corrosion Resistance
Technical Details
  • Pin: 3 Pin
  • Current Rating: 20A Max
  • Material: Metal+plastic
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting
  • UV Resistance: Passed outdoor testing
  • Cable Jacket OD: 2.5-4 mm²
Performance Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A 20A 10A 10A 5A 5A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Key Advantages
  • Material & Performance: High-performance PBT engineering plastic housing with stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components ensure superior conductivity.
  • Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  • Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  • Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
Application Industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devices
LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic 0

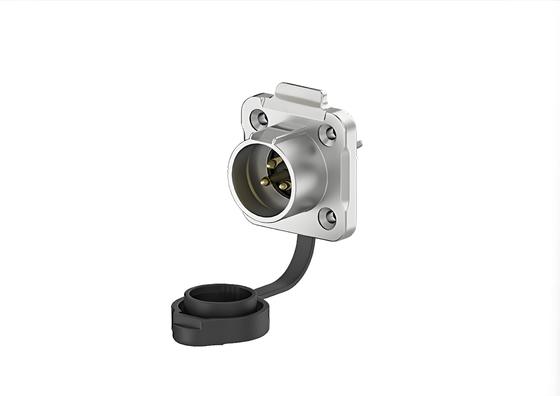

LP20 3-Core Locking Wire 20A Power Flange Waterproof Connector
LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic 1
LP20 Connector Technical Drawing
LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic 2

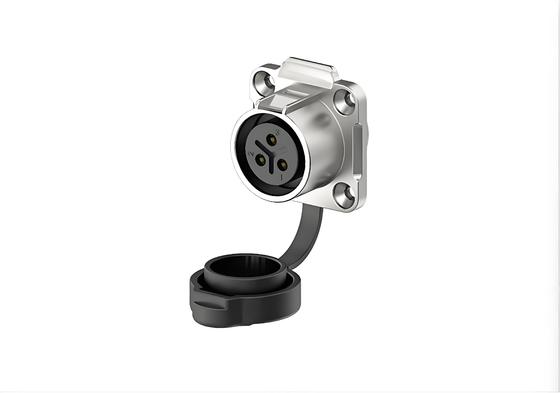

LP20 Connector Detailed View
Frequently Asked Questions
Q: What is the IP rating of this connector, and what environments is it suitable for?
A: The LP20 connector is rated IP67 (standard) or customizable up to IP68, providing dustproof protection (complete prevention of dust ingress) and waterproof capability (submersion up to 1m for 30 minutes at IP67). Ideal for harsh environments like industrial machinery, outdoor LED lighting, marine equipment, and automotive applications.
Q: How does the locking wire mechanism ensure secure connections?
A: The 3-core locking wire design features cable gland strain relief to prevent wire pull-out due to vibrations/tension, threaded lock ring to ensure a tight seal against moisture and dust, and metal-plastic hybrid construction that combines durability (metal flange) with corrosion resistance (plastic housing).
