LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação
Contacte-nos
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contato agora

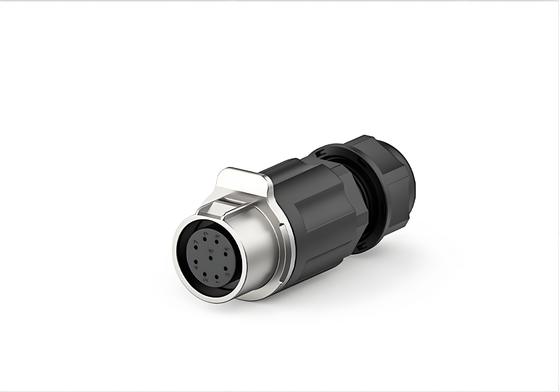

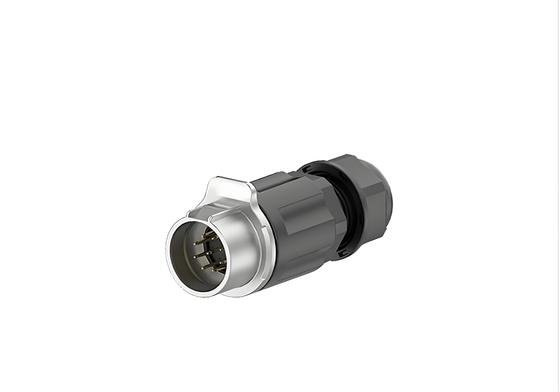

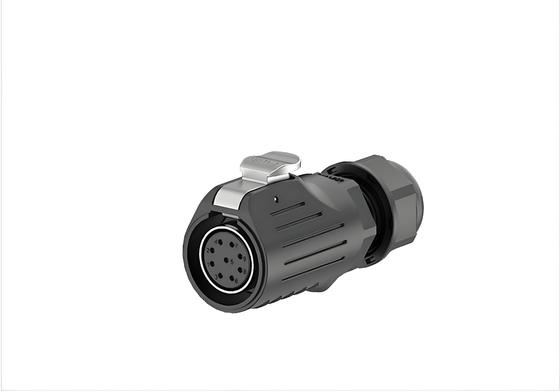

LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
  • Nome
  • Nome
  • Nome
  • Nome

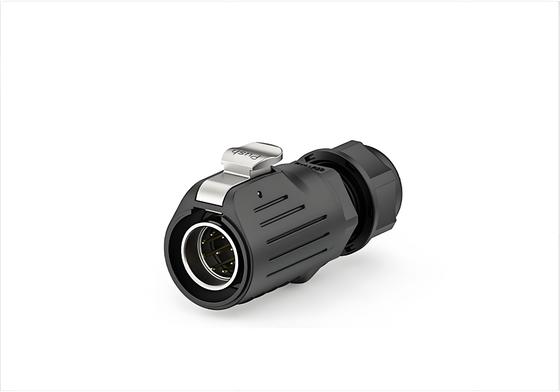

LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals

Nome da marca: Cablein
MOQ: 100pcs
preço: The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem: Carton de exportação de alta qualidade
Condições de pagamento: T/T, Western Union
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
Shenzhen China
Certificação:
CE, ROHS, TUV , ETL
Resistência à corrosão:
Alta resistência à corrosão
Aplicação:
Poder, luz LED, controlador ， sinal
Classificação atual:
5a
Conexão:
caixa terminal/cabo/cabeça da compensação
Nível de IP:
IP67
Suportar a temperatura:
-40 ℃ ~+80 ℃
Habilidade da fonte:
Capacidade de fornecimento suficiente
Descrição do produto
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
Specifications
  • Pin: 9 Pin
  • Current Rating(A): 5A Max
  • Material: Metal+plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 250V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Wire-to-Wire
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 0.34-0.75 mm²
Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V
250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Advantages
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 0 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 1 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 2 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 3
Application industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 4
Drawing
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 5 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 6
FAQ
Q: What are the key applications of the LP20 9-Pin 5A Waterproof Connector?

This connector is designed for robust signal transmission in demanding environments. It is ideal for industrial automation, outdoor equipment, marine electronics, and any application requiring reliable cable-to-cable connections with waterproof protection. The 5A current rating and 9-pin configuration make it suitable for low-power control systems, sensor networks, and data communication setups.

Q: How does the metal shell and plastic interface enhance performance?

The metal shell provides superior mechanical strength, EMI shielding, and durability against physical impacts and corrosion. The plastic interface ensures lightweight insulation and resistance to environmental factors like moisture, UV exposure, and chemicals. Together, they offer a balanced combination of protection, longevity, and reliable signal integrity.

Q:Is this connector truly waterproof, and what standards does it meet?

Yes, the LP20 connector features a waterproof design with IP67 or higher ratings (depending on configuration), meaning it can withstand temporary submersion in water (up to 1 meter for 30 minutes). The solder terminals ensure a secure, gas-tight connection when properly installed, preventing moisture ingress. For specific certification details, refer to the product datasheet or contact our support team.
