Conector circular impermeável

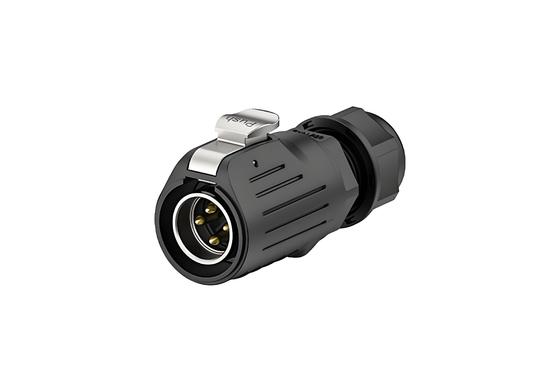

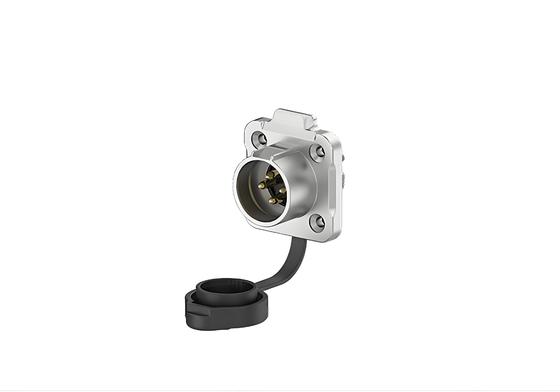

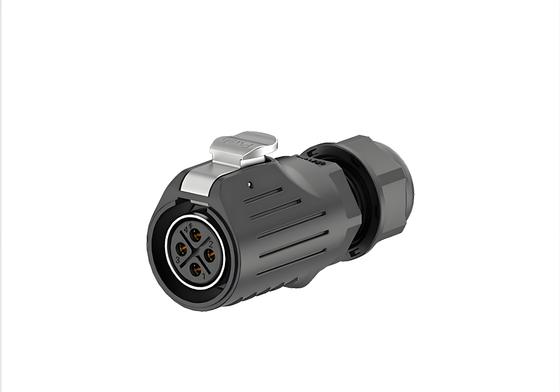

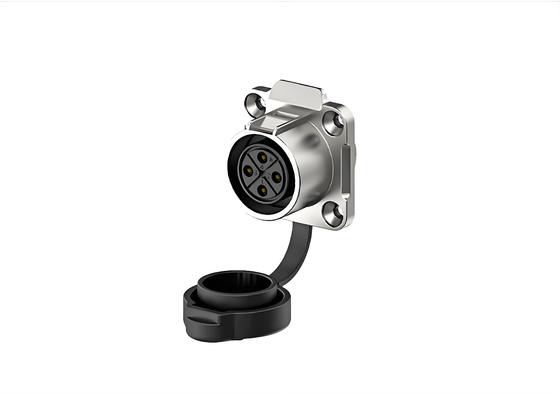

LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount

Todas as categorias

Conector circular impermeável

Conector fêmea masculino impermeável

Conector de alimentação impermeável

conector de cabo impermeável

Conector de sinal à prova de água

Conector de dados à prova de água

Conector RJ45 impermeável

Conector de montagem de painel à prova de água

Conectores LED à prova d'água

Conector de alimentação

Contacte-nos

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contato agora

LP20 4-Core 20A Waterproof Connector IP68 Metal Plastic Flange Mount

Nome da marca:	Cablein
MOQ:	100PCS
preço:	The price ranges from $1 to $4 USD per pieces
Detalhes da embalagem:	High Quality export carton
Condições de pagamento:	T/T,Western Union

Informações detalhadas

Descrição do produto

Informações detalhadas

Place of Origin:

Shenzhen China

Certificação:

CE, ROHS, TUV , ETL

Name:

LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector

Corrosion Resistance:

High Corrosion Resistance

Flame Resistanc:

UL94 V-0

Waterproof:

IP68/IP67

Dustproof:

100% Dustproof

Withstand Temperature:

-40℃~+80℃

Metal:

Gilded brass

Material:

Metal + Plastic

Destacar:

4-core waterproof connector IP68

20A flange mount connector

metal plastic circular connector

Descrição do produto

LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector

Product Attributes

Attribute	Value
Name	LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
Corrosion Resistance	High Corrosion Resistance
Flame Resistance	UL94 V-0
Waterproof	IP68/IP67
Dustproof	100% Dustproof
Withstand Temperature	-40℃~+80℃
Metal	Gilded brass
Material	Metal + Plastic

Product Specifications

Pin: 4 Pin
Current Rating: 20A Max
Material: Metal + Plastic
Connection Method: Push-button snap fastener
Operating Voltage: 500V Max
Assembly Wire: IP-Rated Locking Gland
Mounting Type: Flange Mounting Type
Outdoor UV Resistance: Pass
Cable Jacket OD: 2.5-4 mm²

Technical Specifications

Pins Number	2Pins	3Pins	4Pins
Rated Voltage	500V \| 250V
Rated Current	20A	10A	5A
Insulation voltage	2.5KV	1.5KV
IP CODE	IP68
Cable Jacket OD	Standard Power: ⌀8-12mm Standard Signal: ⌀5-6.5mm Other: ⌀5-9mm
Assembly cable diameter	2.4-4mm²/14-12AWG \| 1-1.5mm²/18-16AWG \| 0.34-0.75mm²/22-20AWG
Ambient temperature	-40℃~+80℃

Product Advantages

Material & Performance: High-performance PBT engineering plastic housing with stable electrical properties, excellent heat and corrosion resistance. Gold-plated conductive components ensure superior conductivity.
Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
Waterproof Design: Standard IP67 rating (IP68 optional) for precise waterproof protection.
Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications.
High Current Capacity: Supports 20A power transmission for medium-to-high-power applications.
Versatile Compatibility: 4-core design allows multiple signal/power transmissions in a compact connector.

Application Industries

Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices

LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector

Connector Technical Drawing

Connector Technical Details

Frequently Asked Questions

Q: How does the locking mechanism operate? Does it support quick mating/unmating?

Locking Operation: The cable is secured by rotating or pressing the connector's latch mechanism (specific method varies by model) to prevent loosening in high-vibration environments.

Mating/Unmating Performance: Quick plugging/unplugging is supported, but the locking mechanism must be disengaged first to avoid interface damage.

Q: Can pin assignments or color markings be customized?

Yes, we support the following customizations:

Pin assignment modification (e.g., redefining Pin #1 as signal terminal)
Housing color options (red/blue/green, etc. for voltage level identification)
Cable length adjustments (specific requirements needed)
